Specifying facade materials comes with incredibly high stakes. Architects and builders must balance stunning aesthetics, unwavering structural integrity, and rigorous life-safety compliance. You also need to minimize future maintenance routines. You require a highly versatile solution. An aluminum composite panel fits this role perfectly. However, this is only true if its technical specifications align directly with your project realities. Making the wrong choice can lead to failed inspections, surface warping, or rapid color fading.
We designed this article to provide a rigorous, evidence-based framework. We will break down exactly how to evaluate these materials properly. You will learn to navigate material science, structural code requirements, and real-world performance benchmarks. This detailed guide helps you confidently shortlist the best facade solutions for your next commercial or residential project.
Match the Core to the Code: Never compromise on fire-retardant (FR) or non-combustible (A2) cores for mid-to-high-rise exterior applications.
Specify the Right Thickness: A 4mm composite panel with a 0.5mm aluminum skin is the industry standard for exterior facades to prevent "oil-canning" and ensure rigidity.
Demand PVDF Coatings: For exterior cladding, PVDF (Polyvinylidene Fluoride) coatings are non-negotiable for UV resistance and long-term color retention.
Verify Through Physical Testing: Quality panels should withstand extreme bending and routing without the aluminum skin delaminating or the core cracking.
You must establish strict baseline parameters before exploring aesthetic finishes or color palettes. A robust exterior cladding material must survive decades of environmental abuse. It also has to pass stringent local building codes. Jumping straight into design choices often leads to costly revisions later.
Fire compliance acts as your absolute first filter. You cannot compromise here. Building codes strictly dictate what materials you can install based on the structure's height and occupancy type. Identify your local height restrictions immediately. Mid-rise and high-rise structures legally require high-performance fire ratings. You must consult your local fire marshals or building inspectors. Make sure you understand the required flame spread index. Discard any supplier options failing these local mandates.
Every building faces unique environmental stressors. You must analyze the specific structural loads acting upon your facade.
Wind Load Requirements: High-rise buildings face immense negative wind pressures. Panels must resist these forces without bending or popping out of their frames.
Thermal Expansion Realities: Metal expands under heat. You must calculate joint sizes accurately to allow movement. Rigid, unforgiving installations will cause buckling.
Local Weather Patterns: Coastal buildings face aggressive salt spray. Such exposure demands specific anti-corrosion treatments to prevent rapid oxidation. Desert climates require superior UV resistance.
Consider your architectural design early in the process. Will your facade require complex routing? Do you plan to fold the panels into deep cassettes? Does the design include sweeping curves? Establish these fabrication requirements upfront. Low-quality panels fail under mechanical stress. Their skins crack, or their cores snap during routing. Knowing your fabrication limits helps you eliminate inferior products immediately.
The internal chemistry and structural makeup of your panels dictate their ultimate survival. A panel looks like a single solid piece, but it functions as an engineered sandwich. The quality of its internal core and external skins determines safety and stability.
The core material acts as the heart of the panel. You generally choose between three distinct core types.
Polyethylene (PE) Cores: These cores consist of 100% plastic. They carry severe fire risks. PE cores melt and ignite rapidly under intense heat. You must strictly limit PE panels to ground-level signage or single-story, low-risk use.
Fire Retardant (FR) Cores: FR cores contain a high percentage of mineral fillers. These minerals release water vapor when exposed to fire. This reaction delays flame spread and reduces smoke generation. They serve as the standard for compliant commercial construction.
A2 Non-Combustible Cores: A2 cores contain up to 90% inorganic mineral content. They will not contribute to a fire. High-rise structures globally mandate A2 cores for ultimate life-safety compliance.
The thickness of the top and bottom aluminum coils matters just as much as the overall panel depth. Many contractors make the mistake of ignoring skin thickness. They focus only on the total panel size.
A 0.3mm aluminum skin lacks structural rigidity. Fabricators use it primarily for flat, indoor applications. If you route or fold a 0.3mm skin, the metal often tears. For heavy-duty exterior routing, you absolutely need a 0.5mm skin. This thicker skin provides vital structural integrity. It actively prevents "oil-canning," which is a visible, wavy distortion across the panel surface. A 0.5mm skin keeps your facade perfectly flat and visually stunning.
Facade engineering relies heavily on optimal strength-to-weight ratios. The physical dimensions of your panels directly impact wind resistance, installation speed, and framing requirements. Over the years, the industry settled on a specific sweet spot for exterior applications.

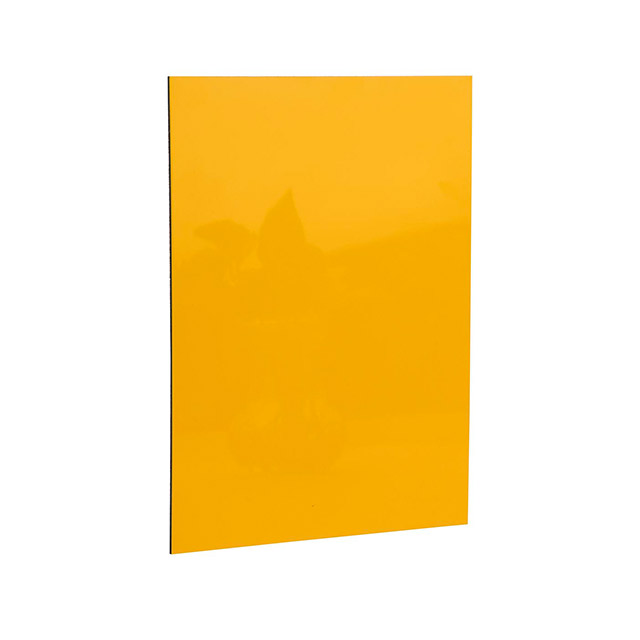

A 4mm composite panel dominates the exterior cladding market. The physics behind this are straightforward. A 4mm overall thickness offers an ideal balance. It is lightweight enough to reduce the dead load on the building's structural frame. Simultaneously, it remains rigid enough to span large gaps without bowing. This specific thickness provides a high moment of inertia, meaning it resists bending under heavy wind loads.
Understanding alternative sizes helps clarify why 4mm rules the exterior market. Consider the differences closely.
Cladding Material Dimension Comparison Chart
Overall Thickness | Typical Skin Thickness | Primary Application | Rigidity Level |
|---|---|---|---|
3mm | 0.2mm - 0.3mm | Interior design, flat signage, displays | Low. Prone to warping outdoors. |
4mm | 0.5mm | Standard exterior facades, commercial cladding | High. Resists wind loads and oil-canning. |
6mm | 0.5mm+ | Extreme heavy-duty uses, industrial zones | Maximum. Heavy and requires reinforced framing. |
Panel width plays a massive role in project economics. Standard widths usually measure 1220mm or 1500mm. Selecting these standard dimensions significantly reduces material waste. Manufacturers produce them continuously. Custom widths require special production runs, increasing both lead times and costs. By aligning your architectural grid to standard panel widths, you protect your overall project budget while minimizing environmental waste through offcuts.
A beautiful building quickly becomes an eyesore if its paint degrades. UV radiation, acid rain, and urban pollution constantly attack exterior surfaces. Selecting the correct paint system ensures your aluminum wall panel retains its original brilliance.
Coating chemistry dictates long-term performance. Polyester (PE) coatings cost less upfront. They offer vibrant colors and work exceptionally well for interior applications. However, PE paint fades rapidly under harsh UV light. It also chalks, leaving a powdery residue on the surface.
Polyvinylidene Fluoride (PVDF) coatings offer a completely different performance class. PVDF is non-negotiable for exterior cladding. It relies on incredibly strong carbon-fluorine bonds. These bonds resist breakdown from sunlight and harsh chemicals. PVDF delivers superior chalking resistance, excellent color retention, and strong chemical resistance against industrial smog.
Sometimes, your design demands an ultra-high gloss finish. Standard PVDF typically peaks at a medium gloss level. For mirror-like finishes, you should explore FEVE (Fluoroethylene Vinyl Ether) coatings. FEVE provides similar long-term weatherability and UV resistance to PVDF. However, its unique molecular structure allows for intense gloss retention, making it perfect for striking, modern architectural statements.
Never accept a verbal promise regarding paint longevity. You must secure a credible, written coating warranty. For standard environments, a legitimate PVDF warranty covers 15 to 20 years. This warranty should explicitly guarantee color retention, gloss retention, and film adhesion. Read the fine print carefully. Watch out for clauses voiding the warranty due to routine coastal salt exposure unless you specified a marine-grade finish.
Marketing brochures rarely tell the full story. You need practical ways to verify the quality of the materials arriving on your job site. Physical inspections separate premium products from cheap imitations.
Fabricators routinely score and fold an ACP cladding panel to create mounting cassettes. This process involves V-grooving the back of the panel. You can test a sample yourself. Ask your fabricator to route a standard V-groove. Then, bend the edge to 90 degrees multiple times. A premium panel handles repeated bends flawlessly. The core will not snap. The front aluminum skin will not crack or tear. If the panel breaks easily, reject the batch immediately.
Delamination represents a catastrophic failure. This occurs when the aluminum skin separates from the internal core. High-quality panels prevent this by using advanced macromolecular adhesive films. During the manufacturing process, heat and pressure fuse the metal, adhesive, and core into a single inseparable unit. You can request a "T-peel test" report. This standardized test measures the exact force required to rip the skin away. High peel strength guarantees the panel survives extreme temperature fluctuations without bubbling.
Examine physical samples under strong, natural daylight. Look for specific visual defects.
Coating Uniformity: The paint should look perfectly smooth. Reject panels showing surface pitting, dust inclusions, or uneven gloss patches.
Edge Cleanliness: The cut edges should appear sharp and clean. Sloppy edges indicate poor factory maintenance.
Dimensional Tolerances: Measure the panel with digital calipers. Strict dimensional tolerances are vital. The total thickness should not deviate by more than ±0.2mm. Inconsistent thickness ruins seamless facade alignments.
Choosing a manufacturing partner requires due diligence. A poor supplier creates massive headaches during installation. You must demand transparency and track records before signing purchase orders.
Never rely on a manufacturer's self-declared safety ratings. You must require transparent access to official third-party test data. Request documents proving compliance with widely accepted standards. Look for ASTM E84 (flame spread) or EN 13501-1 (European fire classification) reports. Ensure independent, certified laboratories issued these reports recently. If a vendor hesitates or provides expired certificates, walk away immediately.
Large projects often require multiple production batches. Paint colors can shift slightly between batches, creating a patchwork effect on your building. Ensure the manufacturer employs robust batch-tracking systems. They should guarantee color consistency across large production runs using computerized color matching. Ask them how they trace defects back to the extrusion line.
A great panel fails if you mount it incorrectly. Confirm the materials are fully compatible with your chosen mounting system. Some panels work perfectly in a folded cassette system. Others perform better in a flat-stick or tray system. Discuss these mechanics with the vendor. Ensuring compatibility upfront prevents on-site fabrication disasters and avoids voiding your structural warranties.
Choosing the right aluminum facade material requires a careful balancing act. You must align structural physics, chemical resistance, and strict life-safety compliance. Do not let aesthetic desires overshadow baseline engineering realities. Specifying a durable core, an adequate skin thickness, and a premium PVDF coating ensures your building looks pristine for decades.
Prioritizing low initial costs over core safety or coating quality inevitably leads to expensive remediation. Warped panels and faded paint destroy a property's value. We strongly encourage project managers, architects, and facade engineers to remain vigilant. Request physical samples. Scrutinize technical spec sheets. Demand third-party testing certifications for all shortlisted materials before finalizing your design.
A: A solid aluminum panel consists of a single, thick sheet of pure metal. It is highly durable but heavy. An aluminum composite panel uses a sandwich structure. It bonds two thin aluminum skins to a central core (like FR or A2). This composite design offers superior flatness, lighter weight, and easier fabrication compared to solid metal.
A: When manufactured with premium materials and installed correctly, these panels easily last 20 to 30 years. Lifespan relies heavily on the paint quality. High-end PVDF coatings protect the metal from UV rays and weather degradation, ensuring long-term color stability and structural integrity.
A: Yes, fabricators routinely curve them using roll-bending machines. However, you must respect the material's minimum bending radius to prevent the core from buckling. A 0.5mm aluminum skin is critical for curving, as thinner skins will crease or tear under the mechanical stress of the rollers.
A: You should establish a low-impact maintenance routine. Clean the surface annually using a soft sponge, warm water, and a mild, non-abrasive detergent. Avoid harsh chemical solvents or high-pressure power washing. Gentle cleaning removes corrosive urban dirt and protects the coating warranty.
